Project 3 - The ping program

Introduction

This project is an extension of project 2 where a stub was provided for the Logical Link Control, LLC. In addition, the ARP, IP, and ICMP, protocols will be used in this project in order to implement the response to a ping request. This project is completed when the ping program receives the correct response to an ARP request, and ICMP echo replies in response to echo requests.

There is some administration in order to obtain the source code. Refer to the suggested design of the class hierarchy as well as advice on how to approach the completion of the skeleton code. An executable which may be loaded into the ETRAX unit is compiled, linked, and loaded in the same manner as in the previous overview of the system. Finally, you will have to test your solution.

Recommended reading

Read chapter 3, the internet protocol (IP), and 4, the address resolution protocol (ARP), as well as chapters 6 and 7, about ICMP and the ping program in [Stevens96]. Chapters 9, IP routing, and 10, dynamic routing protocols, are recommended reading as well although they are not essential for the implementation in this project. An ethernet frame description is presented in p.23.

Consult RFC826 on ARP, RFC791 on IP, and RFC792 on ICMP.

The ping program

The ping program is often used as a tool in order to find a diagnose to network problems. It tests whether another host is reachable by sending an ICMP echo request. First of all though, the program must

• find the IP address, and,
• find the ethernet address of the other host,

in order to send the echo request to the right destination.

The host name of the server implementation will be used instead of the IP address, e.g. the server godzilla has the IP address 192.168.10.60 and the ethernet address 02:67:01:04:02:37. When the command ping godzilla is executed on the host linus the address resolving depends on several steps.

• A search for the host godzilla in the file /etc/hosts is performed. If the IP address 192.168.10.60 is defined for godzilla in the file, it is deduced that it is the same subnet which linus belongs to and it is possible to reach godzilla without a router inbetween.
• The next step is to associate an ethernet address with the IP address found. An ARP, address resolution protocol, request is sent as a broadcast to all hosts on the network. The question asked in the request is: who has the IP address 192.168.10.60? Since the request is sent as a broadcast, every host on the network will decode the ARP packet and compare the IP address received with the one defined for the host.
• If the host godzilla is online, it will identify the ARP request as directed to it and send an ARP reply back. The reply will contain the ethernet address and the IP address, and inform the requesting host: I am 192.168.10.60 and my ethernet address is 02:67:01:04:02:37.
• When the ARP reply is received by linus it is possible to assemble the first  ICMP echo request and send it to the IP address of godzilla with the right ethernet address associated.
• The host godzilla receives the request and decodes it in the different layers ETHERNET, LLC, IP and ICMP, in order to deduce that it is an ICMP echo request directed to godzilla.
• Finally, the host godzilla assembles an ICMP echo reply and sends it to the host where the request originated. It is then the responsibility of the program ping to present the information on the screen in a sensible way.

An important observation is that the host godzilla does not know its name, just its IP and ethernet address. The association between the name and the IP address is performed locally by linus.

Suggested solution design

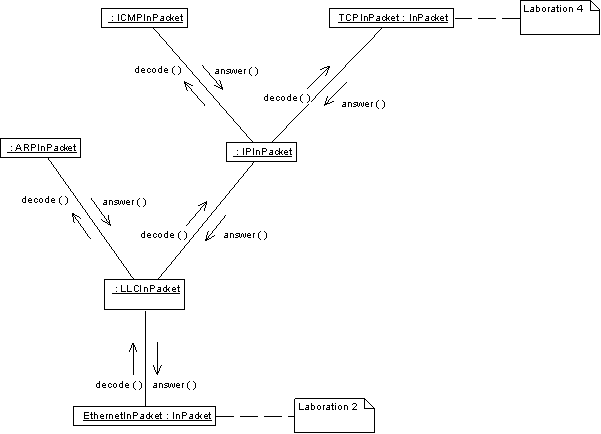

The figure shows the information flow both for a packet received and a packet transmitted. In the previous project, the class EthernetInPacket was implemented. The stub provided for the Logical Link Control, LLC, handled ICMP packets in a crude way and will be replaced in this project. In addition, ARP, IP, and ICMP will be partially implemented. The TCP part will be considered in the next project.

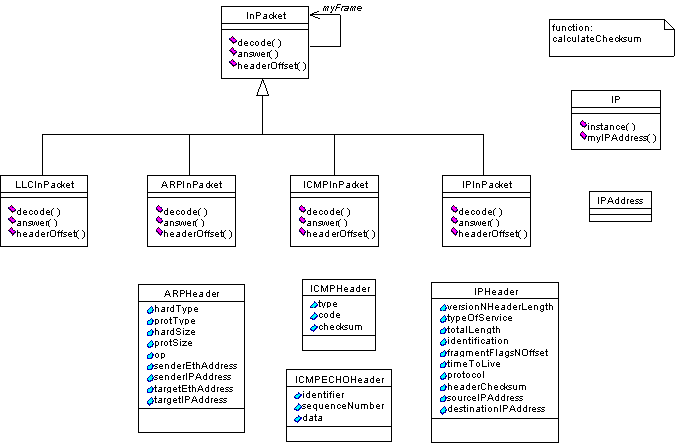

The class diagram below describes the design of the solution for the four protocols to be implemented in this project. Each class is defined in the header files llc.hh, arp.hh, ip.hh and icmp.hh, which are provided for guidance. The corresponding *.cc files are not provided and will contain the code implemented when the project is finished.

A container for the IP address is provided as the class IPAddress in the files ipaddr.[hh,cc]. These files also define and implement a function which calculates checksums, calculateChecksum.

 Details in the implementation

Big and little endian revisited

Remember, all protocols in TCP/IP are big endian whereas the ETRAX architecture is little endian. Thus, the opposite ordering of bytes in integers are used. The macro HILO solves the translation between the two endian formats. For example,

uword realPacketLength = HILO(anIPHeader->totalLength);
anIPHeader->totalLength = HILO(realPacketLength);

Only 16 bit integers are affected since integers only are interpreted in the sense of big or little endian. Other fields, e.g. the IP address and the ethernet address, are interpreted without being affected by the endian.

 No rule without an exception. The function calculateChecksum returns a result which is big endian, according to the network byte order, and should not be altered.

anIPHeader->headerChecksum = calculateChecksum((byte*)anIPHeader,
                                                IP::ipHeaderLength,
                                                0);

Memory leaks

A check of memory leaks (dynamically allocated memory not returned to the system) may be accomplished by a printout in the frontpanel class for example. Every time a LED blinks the total amount of memory left in the system may be printed with the statement

cout << "Core " << ax_coreleft_total() << endl;

The LLC layer

• It may be assumed that ethernet encapsulation (RFC894) only should be detected. The IEEE 802.2/802.3 encapsulation (RFC1042) may be ignored [Stevens96] p.23. It is advisable however that the IEEE 802.2/802.3 frame is decoded. The ambitious student should implement this!
• The type field in the ethernet frame is used in order to distinguish between ARP packets and IP datagrams [Stevens96] p.23.
• Detect ARP packets and IP datagrams and send them to the appropriate layers for further processing.

The ARP layer

• Detect an ARP requst where the target IP address is that of your server [Stevens96] sec.4.4, and generate an ARP reply packet containing the ethernet address of your server in response.

The IP layer

• The different fields in the IP datagram are described in [Stevens96] sec.3.2.
• It may be assumed that the issues of routing as well as fragmented IP datagrams can be ignored.
• The only packets to be processed are those addressed directly to the server, all IP broadcasts may be ignored.
• Detect ICMP echo requests and send them to the approriate layer. Local copies of fields are only needed for the protocol field which describes what type of  IP datagram it is, TCP, ICMP, UDP, ..., and the source IP address, which defines the host sending the request. Both fields are used in generating an ICMP echo reply.

 There are a number of issues to consider in the process of decoding an IP datagram.

• Check the version field and make sure it contains the value 4.
• Check the header length field. Process the packet if the field contains the value 5. Either throw the packet away or calculate the start of the data content if the value is larger than 5.
• Ignore the type of service field at present.
• Use the field total length in order to calculate the length of the packet to be sent on to the upper layers of the stack. This is important as the packet may contain frame padding from the ethernet layer.
• Ignore the identification field since fragmentation will not be handled at present.
• Make sure the packet is not fragmented by a check that the field fragmentFlagsNOffset (defined in the class IPHeader) & 0x3FFF is zero.
• Ignore the time to live field since routing is ignored at present.
• Extract and save the content of the field protocol. It is needed for replies.
• Ignore the checksum field as the checksum of the ethernet frame has already been determined as correct in a lower layer.
• Extract and save the content of the field source IP address. It is needed for replies.
• Check if the field destination IP address contains the address of your server. The packet may be thrown away if the IP address is different from that of your server. This field is the first to check if an effective algorithm is desired.

The assembly of a reply packet is accomplished as follows.

• Set the version field to 4.
• Set the header length field to 5.
• Set the type of service field to 0.
• Calculate and set the total length field.
• Set the identification field to a unique sequential number, e.g. the value of a global variable which is incremented each time an IP packet is sent.
• Set the field fragmentFlagsNOffset to 0.
• Set the time to live field to 64, which is the default in TCP/IP.
• Set the field protocol to the value saved in the decoding process.
• Set the checksum field to 0 in to prepare for the checksum calculation.
• Set the field source IP address to the IP address of your server.
• Set the field destination IP address to the source IP address saved in the decoding process.
• Calculate the checksum of the IP header with the provided function calculateChecksum and store the value in the field checksum.

ICMP

• Detect ICMP echo requests and answer them [Stevens96] p.86. The assembly of a reply packet is accomplished by changing the fields type and checksum.

Source code, compilation, linking and loading

Make sure your present working directory is ~/kurs/src. Remove the subfolder lab3 if it exists in ~/kurs/src. Then, copy all files from your solution in project 2 with the command

cp -r lab2 lab3

and change your present working directory into ~/kurs/src/lab3. This project will be an extension of your solution in project 2. Add the skeleton of project 3 to your previous files with the command

cp -r ~inin/kurs/src/lab3/* .

There should be six files in addition to the ones from project 2 in the directory lab3,

• llc.hh, a declaration of the class LLCInPacket,
• arp.hh, declarations of the classes ARPInPacket and ARPHeader,
• ip.hh, declarations of the classes IP, IPInPacket and IPHeader,
• icmp.hh, declarations of the classes ICMPInPacket, ICMPHeader and ICMPECHOHeader,
• ipaddr.hh, declarations of the class IPAddress and the function calculateChecksum, and
• ipaddr.cc, the implementation of the declarations in the corresponding header file.

The file llc.cc from project 2 will need modifications in order to replace the stub with functional code. In addition, arp.cc, ip.cc and icmp.cc must be created from scratch.

The target of the make process is defined in the file /kurs/make/lab3/modules. Make sure that your present working directory is ~/kurs/make and type the commands:

• genmake -no-lint-files lab3, which creates a new makefile for the new target source code,
• axmake -clean lab3, which removes all old object files created in previous compilations (very important as the make application could use outdated object files),
• axmake lab3, which compiles and links the new target source code.

Testing the solution

The tools in this project are

• the program ping which is to be executed on the server linus, or one of the NT machines and,
• the network monitor executing on the NT-workstation.

The ping program is used in order to test the solution.

• log on linus,
• execute the command arp -d your-IP-address, in order to remove a possible entry in the ARP cache,
• check the ARP cache with the command arp -a in order to make sure its clean,
• execute ping your-IP-address (terminate the command with Ctrl-C), and,
• check if the ARP cache contains an association between IP number and ethernet address with the command arp -a your-IP-address.

The ping-program has an option -s which sets the packet size to be transmitted. Try sending packets with various sizes from 4 to 1450 and make sure you understand which packet sizes are critical,

Test the behaviour of the ping program by executing the command ping print-1. It will show the response of a working IP stack if you are uncertain on what to expect. When everything is working in your server solution, the response in the terminal window will look the same.

Use the application Ethereal in order to detect what is sent on the network

Note that the ARP packets must be processed correctly in order to allow the ping program to send ICMP requests. Even if the ARP processing is working, the ICMP processing might be incorrect.
