Källkod

All your base are belong to us.

* FlappyBird.c
 *
 * Created: 2014-03-21 15:11:35
 *  Author: digpi10
 */

#include
#include

#include "display.h"
#include "draw.h"
#include "drawings.h"
#include "sound.h"

short int mainButtonPressed;
short int menuButtonPressed;

short int birdIsDead;
short int collision;
short int score = 0;

short int tickDelay = 50;
short int gamePhase;

struct Bird {
    int x;
  int y;
};

struct Tube {
  int x;
  int y;
};

struct Tube tubeArray[3];
struct Bird bird;

struct Tube nullTube;

short int tickCount = 0;
short int createNewTubePace = 40;
short int numberOfTubes = 0;

int main(void)
{
  startGame();
  while(1){
  }
}

void startGame() {
  setup();
  while (1) {
    switch(gamePhase) {
      case 0:
        startPhase();
        break;
      case 1:
        game();
        break;
      case 2:
        showResults();
        break;
      default:
      break;
    }
  }
}

void game() {
   birdIsDead = 0;
   while (birdIsDead != 1) {
     tick();
     _delay_ms(tickDelay);
   }
   gamePhase = 2;
}

void tick() {
  checkCollision();
  if (collision == 1) {
    birdIsDead = 1;
  } else {
    readMainButton();
    if (mainButtonPressed) {
      moveBirdUp();
    } else {
      moveBirdDown();
    }
    moveTubes();
    scoreCount();
    if (tickCount > createNewTubePace) {
      if (numberOfTubes < 2) {
        numberOfTubes++;
        createNewTube(numberOfTubes);
      }
      tickCount = 0;
    }
    tickCount++;

  }
}

void scoreCount(){
  for (int k = 0; k < 3; k++) {
    if ( tubeArray[k].y == (bird.y + 15)) {
      score++;
      jumpSound();
    }
  }
}

void showResults() {
  removeBird();
  setScore(paintBlack,score);
  drawFrame(paintWhite);
  for (int k = 0; k < 3; k++) {
    removeTube(tubeArray[k].x,tubeArray[k].y);
  }
  deathSound();
  while(1) {
    readMainButton();
    if(mainButtonPressed) {
      startGame();
    }
  }

}

void checkCollision() {
  if(bird.x > 51) {
    collision = 1;
  } else if (bird.x < 1) {
    collision = 1;
  } else {
    for (int k = 0; k < numberOfTubes; k++) {
      if((tubeArray[k].y+6) > bird.y) {
        if (tubeArray[k].y < (bird.y + 15)) {
          if(tubeArray[k].x + 2 > bird.x) {
            collision = 1;
          }
          if ((tubeArray[k].x + 2 + 30) < bird.x + 12) {
            collision = 1;
          }
        }
      }
    }
  }
}

void moveBirdUp() {
  removeBird();
  bird.x += 1;
  drawBird();
}

void moveBirdDown() {
  removeBird();
  bird.x -= 1;
  drawBird();
}

void moveTubes() {
  removeTube(tubeArray[0].x,tubeArray[0].y);
  tubeArray[0].y++;
  if (tubeArray[0].y > 121) {
    tubeArray[0].y = 0;
  } else {
    drawTube(tubeArray[0].x,tubeArray[0].y);
  }
  if (numberOfTubes > 0) {
    removeTube(tubeArray[1].x,tubeArray[1].y);
    tubeArray[1].y++;
    if (tubeArray[1].y > 121) {
      tubeArray[1].y = 0;
    } else {
      drawTube(tubeArray[1].x,tubeArray[1].y);
    }
  }
  if (numberOfTubes > 1) {
    removeTube(tubeArray[2].x,tubeArray[2].y);
    tubeArray[2].y++;
    if (tubeArray[2].y > 121) {
      tubeArray[2].y = 0;
    } else {
      drawTube(tubeArray[2].x,tubeArray[2].y);
    }
  }
}

void startPhase() {
  bird.x = 20;
  bird.y = 84;

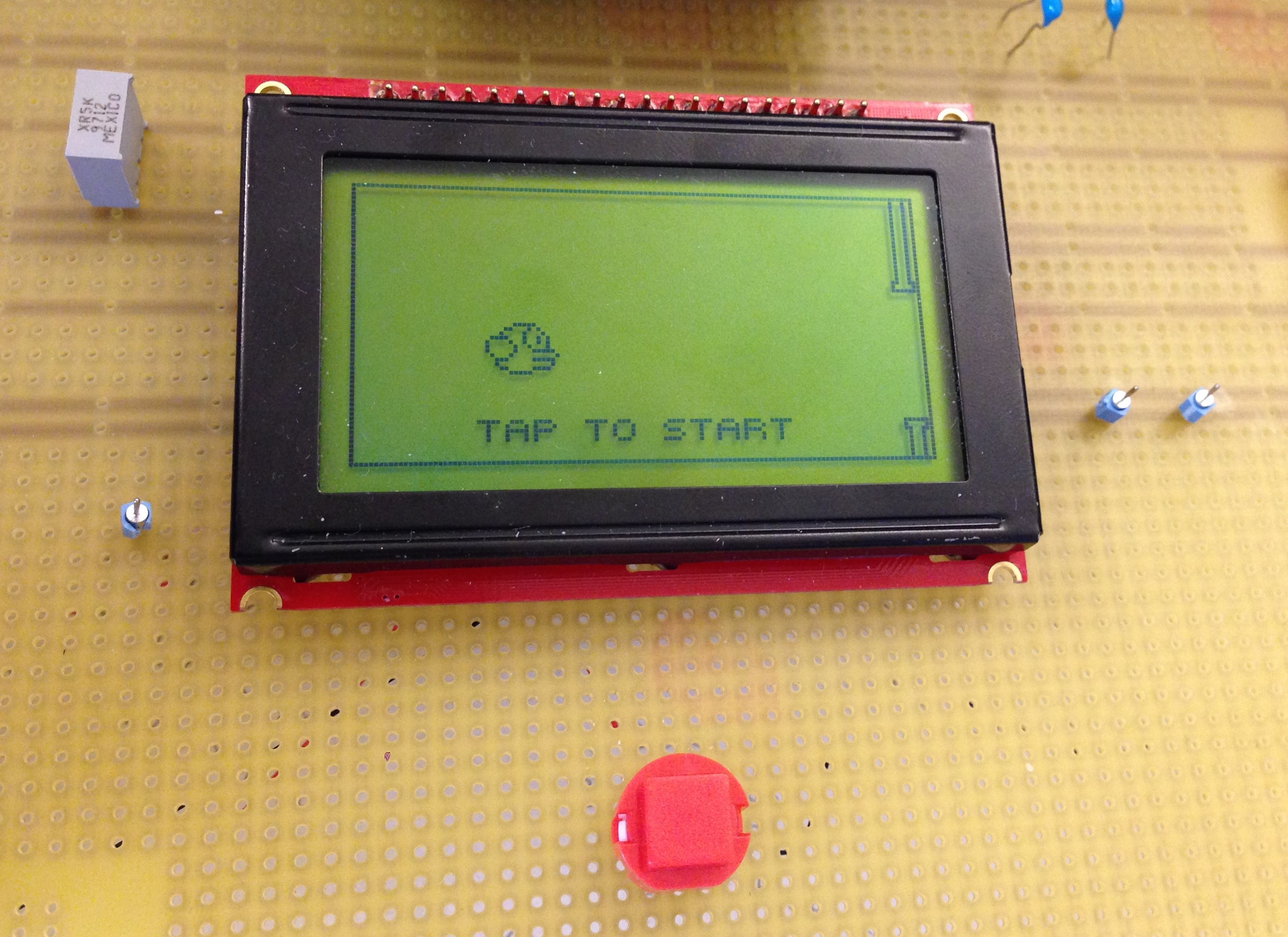

  drawStartScreen();
  createNewTube(0);
  startSound();
  while(1){
    readMainButton();
    if (mainButtonPressed) {
       gamePhase = 1;
       setTapToStart(paintWhite);
       drawFrame(paintWhite);
       return;
    }
  }
}

void createNewTube(int n) {

    struct Tube tube;
    tubeArray[n] = tube;
    tubeArray[n].x = 10 + (5 * n);
    tubeArray[n].y = 1;
    drawTube(tubeArray[n].x, tubeArray[n].y);

}

void setup() {
  DDRD = 0xFF;
  DDRB = 0xFF;
  dispOn();
  emptyDisplay();
  gamePhase = 0;
  score = 0;
  collision = 0;
  numberOfTubes = 0;
  tickCount = 0;
}

void drawBird() {
  setBird(bird.x, bird.y, paintBlack);
}

void removeBird() {
  setBird(bird.x, bird.y, paintWhite);
}

void readMainButton() {
  short int status = PINA | 0xF3;
  if ( status == 0xF3) {
    status = PINA | 0xFB;
    if (status == 0xFB) {
      mainButtonPressed = 1; // knappen är nedtryck
    }
  } else {
    mainButtonPressed = 0;// knappen är inte nedtryckt
  }
}
void readMenuButton() {
  short int status = PINA | 0xFD;
  if ( status == 0xFD) {
    menuButtonPressed = 1; // knappen är nedtryck
  } else {
    menuButtonPressed = 0; // knappen är inte nedtryckt
  }
}

/*
 * display.h
 *
 * Created: 2014-03-21 15:11:35
 *  Author: digpi10
 */


char display[8][128];

void dispOn() {
  DDRD = 0xFF;
  PORTD = 0x3F;
  PORTB = 0xCD;
  PORTB = PORTB & 0xBF;

  PORTB = 0xCE;
  PORTB = PORTB & 0xBF;
}

void dispOff() {
  DDRD = 0xFF;
  PORTD = 0x3E;
  PORTB = 0xCD;
  PORTB = PORTB & 0xBF;

  PORTB = 0xCE;
  PORTB = PORTB & 0xBF;
}
/*
 * draw.h
 *
 * Created: 2014-03-21 15:11:35
 *  Author: digpi10
 */

short int paintBlack = 1;
short int paintWhite = 0;

void setPixel(short int x, short int y, short int operation) {
  PORTB = PORTB | 0x03;
  PORTD = 0x00;
  PORTB = PORTB | 0x10;
  int yPos;
  int xPos = x;
  if( y < 64) {
    PORTB = PORTB & 0xFD;
    yPos = y;
  } else {
    PORTB = PORTB & 0xFE;
    yPos = y - 64;
  }
  PORTB = PORTB&0xCF;
  setXAddress(x);
  setYAddress(yPos);
  paintPixel(xPos, y, operation);
}

void toggleESignal() {
  PORTB = PORTB | 0x40;
  PORTB = PORTB & 0xBF;
  PORTB = PORTB | 0x40;
}

void setXAddress(short int x) {
  short int xPos = x / 8;
  PORTD = 0xB8 | xPos;
  toggleESignal();
}

void setYAddress(short int y) {
  PORTD = 0x40 | y;
  toggleESignal();
}

void paintPixel(short int x, short int y, short int operation) {
  PORTB = PORTB | 0xEC;
  short int xAddress = (x / 8);
  short int pinOut = (x & 0x07); // genererar 8 bitar där den n:e biten (n = x % 8) är en etta.
  if (operation == paintBlack) {
    display[xAddress][y] = display[xAddress][y] | (0x01 << pinOut);
    PORTD = display[xAddress][y];
  } else {
    display[xAddress][y] = display[xAddress][y] & (0xff - ((0x01 << pinOut)));
    PORTD = display[xAddress][y];
  }
  toggleESignal();
}

void drawLine(int start, int stop) {

}

void emptyDisplay() {
  for(int x = 0; x < 8; x++) {
    for(int y = 0; y < 128; y++) {
      setPixel(x*8 + 0,y,paintWhite);
      setPixel(x*8 + 1,y,paintWhite);
      setPixel(x*8 + 2,y,paintWhite);
      setPixel(x*8 + 3,y,paintWhite);
      setPixel(x*8 + 4,y,paintWhite);
      setPixel(x*8 + 5,y,paintWhite);
      setPixel(x*8 + 6,y,paintWhite);
      setPixel(x*8 + 7,y,paintWhite);
      display[x/8][y] = 0x00;
    }
  }
}

void setPixel2(int x, int y, short int operation) {
  char xAddress = (x / 8);
  short int pinOut = (x & 0x07);
  if(operation == paintBlack) {
    display[xAddress][y] = display[xAddress][y] | (0x01 << pinOut);
  } else {
    display[xAddress][y] = display[xAddress][y] & (0xff - ((0x01 << pinOut)));
  }
}

void reDraw() {
  PORTB = PORTB | 0xEC;
  PORTB = PORTB & 0xEF;
  for(int x = 0; x < 64; x++) {
    for(int y = 0; y < 128; y++) {
      PORTB = PORTB | 0x03;
      char xAddress = (x / 8);
      char yPos;
      if( y < 64) {
        PORTB = PORTB & 0xFD;
        yPos = y;
      } else {
        PORTB = PORTB & 0xFE;
        yPos = y - 64;
      }
      setXAddress(x);
      setYAddress(yPos);
      PORTD = display[xAddress][y];

      toggleESignal();
      }
    }
}
/*
 * drawings.h
 *
 * Created: 2014-03-21 15:11:35
 *  Author: digpi10
 */

short int tubeGap = 30;

void setBird(char x, char y, short int operation){
  setPixel(x+0 ,y+6,operation);
  setPixel(x+0 ,y+7,operation);
  setPixel(x+0 ,y+8,operation);
  setPixel(x+0 ,y+9,operation);
  setPixel(x+0 ,y+10,operation);

  setPixel(x+1, y+2,operation);
  setPixel(x+1, y+3,operation);
  setPixel(x+1, y+4,operation);
  setPixel(x+1, y+5,operation);
  setPixel(x+1, y+11,operation);
  setPixel(x+1, y+12,operation);

  setPixel(x+2, y+1,operation);
  setPixel(x+2, y+13,operation);

  setPixel(x+3, y+1,operation);
  setPixel(x+3, y+2,operation);
  setPixel(x+3, y+3,operation);
  setPixel(x+3, y+4,operation);
  setPixel(x+3, y+5,operation);
  setPixel(x+3, y+11,operation);
  setPixel(x+3, y+12,operation);
  setPixel(x+3, y+13,operation);

  setPixel(x+4, y+0,operation);
  setPixel(x+4, y+10,operation);
  setPixel(x+4, y+14,operation);

  setPixel(x+5, y+1,operation);
  setPixel(x+5, y+2,operation);
  setPixel(x+5, y+3,operation);
  setPixel(x+5, y+4,operation);
  setPixel(x+5, y+5,operation);
  setPixel(x+5, y+9,operation);
  setPixel(x+5, y+15,operation);

  setPixel(x+6, y+2,operation);
  setPixel(x+6, y+6,operation);
  setPixel(x+6, y+9,operation);
  setPixel(x+6, y+15,operation);

  setPixel(x+7, y+2,operation);
  setPixel(x+7, y+4,operation);
  setPixel(x+7, y+7,operation);
  setPixel(x+7, y+10,operation);
  setPixel(x+7, y+15,operation);

  setPixel(x+8, y+2,operation);
  setPixel(x+8, y+4,operation);
  setPixel(x+8, y+7,operation);
  setPixel(x+8, y+11,operation);
  setPixel(x+8, y+12,operation);
  setPixel(x+8, y+13,operation);
  setPixel(x+8, y+14,operation);

  setPixel(x+9, y+3,operation);
  setPixel(x+9, y+7,operation);
  setPixel(x+9, y+12,operation);

  setPixel(x+10, y+4,operation);
  setPixel(x+10, y+6,operation);
  setPixel(x+10, y+10,operation);
  setPixel(x+10, y+11,operation);

  setPixel(x+11, y+5,operation);
  setPixel(x+11, y+6,operation);
  setPixel(x+11, y+7,operation);
  setPixel(x+11, y+8,operation);
  setPixel(x+11, y+9,operation);
}

void drawFrame(short int operation) {
  for(char x = 0; x < 64 ; x++) {
    setPixel(x, 0, operation);
    setPixel(x, 127, operation);
  }
  for(char y = 0; y < 128; y++) {
    setPixel(0, y, operation);
    setPixel(63,y, operation);
  }
}
void drawA(short int x, short int y, short int operation) {
  setPixel(x+0,y+0,operation);
  setPixel(x+0,y+4,operation);
  setPixel(x+1,y+0,operation);
  setPixel(x+1,y+4,operation);
  setPixel(x+2,y+0,operation);
  setPixel(x+2,y+1,operation);
  setPixel(x+2,y+2,operation);
  setPixel(x+2,y+3,operation);
  setPixel(x+2,y+4,operation);
  setPixel(x+3,y+0,operation);
  setPixel(x+3,y+4,operation);
  setPixel(x+4,y+1,operation);
  setPixel(x+4,y+2,operation);
  setPixel(x+4,y+3,operation);
}
void drawT(short int x, short int y, short int operation) {
  setPixel(x+0,y+2,operation);
  setPixel(x+1,y+2,operation);
  setPixel(x+2,y+2,operation);
  setPixel(x+3,y+2,operation);
  setPixel(x+4,y+0,operation);
  setPixel(x+4,y+1,operation);
  setPixel(x+4,y+2,operation);
  setPixel(x+4,y+3,operation);
  setPixel(x+4,y+4,operation);
}
void drawP(short int x, short int y, short int operation) {
  setPixel(x+0,y+4,operation);
  setPixel(x+1,y+4,operation);
  setPixel(x+2,y+1,operation);
  setPixel(x+2,y+2,operation);
  setPixel(x+2,y+3,operation);
  setPixel(x+2,y+4,operation);
  setPixel(x+3,y+4,operation);
  setPixel(x+3,y+0,operation);
  setPixel(x+4,y+1,operation);
  setPixel(x+4,y+2,operation);
  setPixel(x+4,y+3,operation);
  setPixel(x+4,y+4,operation);
}
void drawO(short int x, short int y, short int operation) {
  setPixel(x+0,y+1,operation);
  setPixel(x+0,y+2,operation);
  setPixel(x+0,y+3,operation);
  setPixel(x+1,y+0,operation);
  setPixel(x+1,y+4,operation);
  setPixel(x+2,y+0,operation);
  setPixel(x+2,y+4,operation);
  setPixel(x+3,y+0,operation);
  setPixel(x+3,y+4,operation);
  setPixel(x+4,y+1,operation);
  setPixel(x+4,y+2,operation);
  setPixel(x+4,y+3,operation);
}
void drawS(short int x, short int y, short int operation) {
  setPixel(x+0,y+1,operation);
  setPixel(x+0,y+2,operation);
  setPixel(x+0,y+3,operation);
  setPixel(x+0,y+4,operation);
  setPixel(x+1,y+0,operation);
  setPixel(x+2,y+1,operation);
  setPixel(x+2,y+2,operation);
  setPixel(x+2,y+3,operation);
  setPixel(x+3,y+4,operation);
  setPixel(x+4,y+0,operation);
  setPixel(x+4,y+1,operation);
  setPixel(x+4,y+2,operation);
  setPixel(x+4,y+3,operation);

}
void drawR(short int x, short int y, short int operation) {
  setPixel(x+0,y+0,operation);
  setPixel(x+0,y+4,operation);
  setPixel(x+1,y+0,operation);
  setPixel(x+1,y+4,operation);
  setPixel(x+2,y+1,operation);
  setPixel(x+2,y+2,operation);
  setPixel(x+2,y+3,operation);
  setPixel(x+2,y+4,operation);
  setPixel(x+3,y+0,operation);
  setPixel(x+3,y+4,operation);
  setPixel(x+4,y+1,operation);
  setPixel(x+4,y+2,operation);
  setPixel(x+4,y+3,operation);
  setPixel(x+4,y+4,operation);
}
void drawE(short int x, short int y, short int operation){
  setPixel(x+0,y+0,operation);
  setPixel(x+0,y+1,operation);
  setPixel(x+0,y+2,operation);
  setPixel(x+0,y+3,operation);
  setPixel(x+0,y+4,operation);
  setPixel(x+1,y+4,operation);
  setPixel(x+2,y+1,operation);
  setPixel(x+2,y+2,operation);
  setPixel(x+2,y+3,operation);
  setPixel(x+2,y+4,operation);
  setPixel(x+3,y+4,operation);
  setPixel(x+4,y+0,operation);
  setPixel(x+4,y+1,operation);
  setPixel(x+4,y+2,operation);
  setPixel(x+4,y+3,operation);
  setPixel(x+4,y+4,operation);
}
void drawC(short int x, short int y, short int operation){
  setPixel(x+0,y+1,operation);
  setPixel(x+0,y+2,operation);
  setPixel(x+0,y+3,operation);
  setPixel(x+1,y+0,operation);
  setPixel(x+1,y+4,operation);
  setPixel(x+2,y+4,operation);
  setPixel(x+3,y+0,operation);
  setPixel(x+3,y+4,operation);
  setPixel(x+4,y+1,operation);
  setPixel(x+4,y+2,operation);
  setPixel(x+4,y+3,operation);
}
void setTapToStart(int operation) {
  drawT(5,97,operation);
  drawA(5,91,operation);
  drawP(5,85,operation);
  drawT(5,74,operation);
  drawO(5,68,operation);
  drawS(5,57,operation);
  drawT(5,51,operation);
  drawA(5,45,operation);
  drawR(5,39,operation);
  drawT(5,33,operation);
}

void drawStartScreen() {
  drawFrame(paintBlack);
  drawBird();
  setTapToStart(paintBlack);
}

void setScore(short int operation, short int score){
  drawS(25,80,operation);
  drawC(25,74,operation);
  drawO(25,68,operation);
  drawR(25,62,operation);
  drawE(25,56,operation);
  setPixel(28,54,operation);
  setPixel(26,54,operation);

  short int firstDigit = score % 10;
  short int secondDigit = score / 10;

  drawNumber(25,43,operation,firstDigit);
  drawNumber(25,47,operation,secondDigit);
}
void drawNumber(short int x, short int y, short int operation, short int digit) {
      switch(digit) {
      case 0:
        draw0(x, y, operation);
        break;
      case 1:
        draw1(x, y, operation);
        break;
      case 2:
        draw2(x, y, operation);
        break;
      case 3:
        draw3(x, y, operation);
        break;
      case 4:
        draw4(x, y, operation);
        break;
      case 5:
        draw5(x, y, operation);
        break;
      case 6:
        draw6(x, y, operation);
        break;
      case 7:
        draw7(x, y, operation);
        break;
      case 8:
        draw8(x, y, operation);
        break;
      case 9:
        draw9(x, y, operation);
        break;
      default:
      break;
    }
}
void draw0(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+3,y+0,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+0,y+1,paintBlack);
  setPixel(x+4,y+1,paintBlack);
  setPixel(x+0,y+2,paintBlack);
  setPixel(x+1,y+2,paintBlack);
  setPixel(x+2,y+2,paintBlack);
  setPixel(x+3,y+2,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}
void draw1(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+3,y+0,paintBlack);
  setPixel(x+4,y+0,paintBlack);
}
void draw2(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+0,y+1,paintBlack);
  setPixel(x+0,y+2,paintBlack);
  setPixel(x+1,y+2,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+2,y+1,paintBlack);
  setPixel(x+2,y+2,paintBlack);
  setPixel(x+3,y+0,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+4,y+1,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}
void draw3(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+0,y+1,paintBlack);
  setPixel(x+0,y+2,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+2,y+1,paintBlack);
  setPixel(x+2,y+2,paintBlack);
  setPixel(x+3,y+0,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+4,y+1,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}
void draw4(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+2,y+1,paintBlack);
  setPixel(x+2,y+2,paintBlack);
  setPixel(x+3,y+0,paintBlack);
  setPixel(x+3,y+2,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}
void draw5(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+0,y+1,paintBlack);
  setPixel(x+0,y+2,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+2,y+1,paintBlack);
  setPixel(x+2,y+2,paintBlack);
  setPixel(x+3,y+2,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+4,y+1,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}
void draw6(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+0,y+1,paintBlack);
  setPixel(x+0,y+2,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+1,y+2,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+2,y+1,paintBlack);
  setPixel(x+2,y+2,paintBlack);
  setPixel(x+3,y+2,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+4,y+1,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}
void draw7(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+3,y+0,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+4,y+1,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}
void draw8(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+0,y+1,paintBlack);
  setPixel(x+0,y+2,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+1,y+2,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+2,y+1,paintBlack);
  setPixel(x+2,y+2,paintBlack);
  setPixel(x+3,y+0,paintBlack);
  setPixel(x+3,y+2,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+4,y+1,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}
void draw9(short int x, short int y, short int operation){
  setPixel(x+0,y+0,paintBlack);
  setPixel(x+0,y+1,paintBlack);
  setPixel(x+0,y+2,paintBlack);
  setPixel(x+1,y+0,paintBlack);
  setPixel(x+2,y+0,paintBlack);
  setPixel(x+2,y+1,paintBlack);
  setPixel(x+2,y+2,paintBlack);
  setPixel(x+3,y+0,paintBlack);
  setPixel(x+3,y+2,paintBlack);
  setPixel(x+4,y+0,paintBlack);
  setPixel(x+4,y+1,paintBlack);
  setPixel(x+4,y+2,paintBlack);
}



void drawTubeUp(short int y, short int length, short int operation) {
  short int x = length;

  for(int k = 0; k < x; k++) {
    setPixel(k, y+1, operation);
    setPixel(k, y+4, operation);
  }

  setPixel(x, y+0, operation);
  setPixel(x, y+1, operation);
  setPixel(x, y+4, operation);
  setPixel(x, y+5, operation);
  setPixel(x+1, y+0, operation);
  setPixel(x+1, y+5, operation);
  setPixel(x+2, y+0, operation);
  setPixel(x+2, y+1, operation);
  setPixel(x+2, y+2, operation);
  setPixel(x+2, y+3, operation);
  setPixel(x+2, y+4, operation);
  setPixel(x+2, y+5, operation);

}
void drawTubeDown(short int y, short int length, short int operation) {
  short int x = (63 - length);
  for(int k = 63; k > x; k--) {
    setPixel(k, y+1, operation);
    setPixel(k, y+4, operation);
  }
  setPixel(x, y+0, operation);
  setPixel(x, y+1, operation);
  setPixel(x, y+4, operation);
  setPixel(x, y+5, operation);
  setPixel(x-1, y+0, operation);
  setPixel(x-1, y+5, operation);
  setPixel(x-2, y+0, operation);
  setPixel(x-2, y+1, operation);
  setPixel(x-2, y+2, operation);
  setPixel(x-2, y+3, operation);
  setPixel(x-2, y+4, operation);
  setPixel(x-2, y+5, operation);

}
void drawTube(char x, char y){
  drawTubeUp(y, x-3, paintBlack);
  drawTubeDown(y, 64-x-tubeGap-3, paintBlack);
}

void removeTube(char x, char y){
  drawTubeUp(y, x-3, paintWhite);
  drawTubeDown(y, 64-x-tubeGap-3, paintWhite);
}

#include

#include "sin.h"

/*

Function To Initialize TIMER0 In Fast
PWWM Mode.

*/
void InitPWM()
{
   TCCR0|=(1<=2;delay--)
      {
         for(n=0;n<(51-delay);n++)
         {
            for(i=0;i<=5;i++)
            {
               OCR0=pgm_read_byte_near(sine+i);
               _delay_loop_2(delay);
            }
         }
      }

   }
void startSound()
{
   uint8_t i;

   InitPWM();

      uint8_t delay,n;

      for(delay=1;delay<=50;delay++)
      {
         for(n=0;n<(51-delay);n++)
         {
            for(i=0;i<=20;i++)
            {
               OCR0=pgm_read_byte_near(sine+i);
               _delay_loop_2(delay);

            }
         }
      }
      for(delay=50;delay>=2;delay--)
      {
         for(n=0;n<(51-delay);n++)
         {
            for(i=0;i<=20;i++)
            {
               OCR0=pgm_read_byte_near(sine+i);
               _delay_loop_2(delay);
            }
         }
      }

   }

void jumpSound()
{
   uint8_t I;
   InitPWM();
      uint8_t delay,n;
      for(delay=1;delay<=20;delay++){
         for(n=0;n<(51-delay);n++){
            for(i=0;i<=3;i++){
               OCR0=pgm_read_byte_near(sine+i);
               _delay_loop_2(delay);
            }
         }
      }
      for(delay=20;delay>=2;delay--){
         for(n=0;n<(51-delay);n++){
            for(i=0;i<=4;i++){
               OCR0=pgm_read_byte_near(sine+i);
               _delay_loop_2(delay);
            }
         }
      }
   }

#include

uint8_t sine[256]={127, 130, 133, 136, 139, 143, 146, 149, 152, 155, 158, 161, 164, 167, 170, 173, 176, 178, 181, 184, 187, 189, 192, 195, 197, 200, 203, 205, 207, 210, 212, 214, 217, 219, 221, 223, 225, 227, 229, 231, 232, 234, 236, 237, 239, 240, 242, 243, 244, 245, 246, 248, 248, 249, 250, 251, 251, 252, 253, 253, 253, 254, 254, 254, 254, 254, 254, 254, 253, 253, 253, 252, 252, 251, 250, 250, 249, 248, 247, 246, 245, 243, 242, 241, 239, 238, 236, 235, 233, 231, 229, 227, 225, 224, 221, 219, 217, 215, 213, 210, 208, 206, 203, 201, 198, 195, 193, 190, 187, 185, 182, 179, 176, 173, 170, 167, 164, 161, 158, 155, 152, 149, 146, 143, 140, 137, 134, 131, 128, 125, 121, 118, 115, 112, 109, 106, 103, 100, 97, 94, 91, 88, 85, 82, 79, 76, 73, 71, 68, 65, 62, 60, 57, 55, 52, 50, 47, 45, 42, 40, 38, 36, 34, 31, 29, 27, 26, 24, 22, 20, 19, 17, 15, 14, 13, 11, 10, 9, 8, 7, 6, 5, 4, 3, 3, 2, 2, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 2, 2, 3, 4, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 16, 17, 19, 21, 22, 24, 26, 28, 30, 32, 34, 36, 39, 41, 43, 45, 48, 50, 53, 55, 58, 61, 63, 66, 69, 72, 74, 77, 80, 83, 86, 89, 92, 95, 98, 101, 104, 107, 110, 113, 116, 119, 122, };
