IC testare

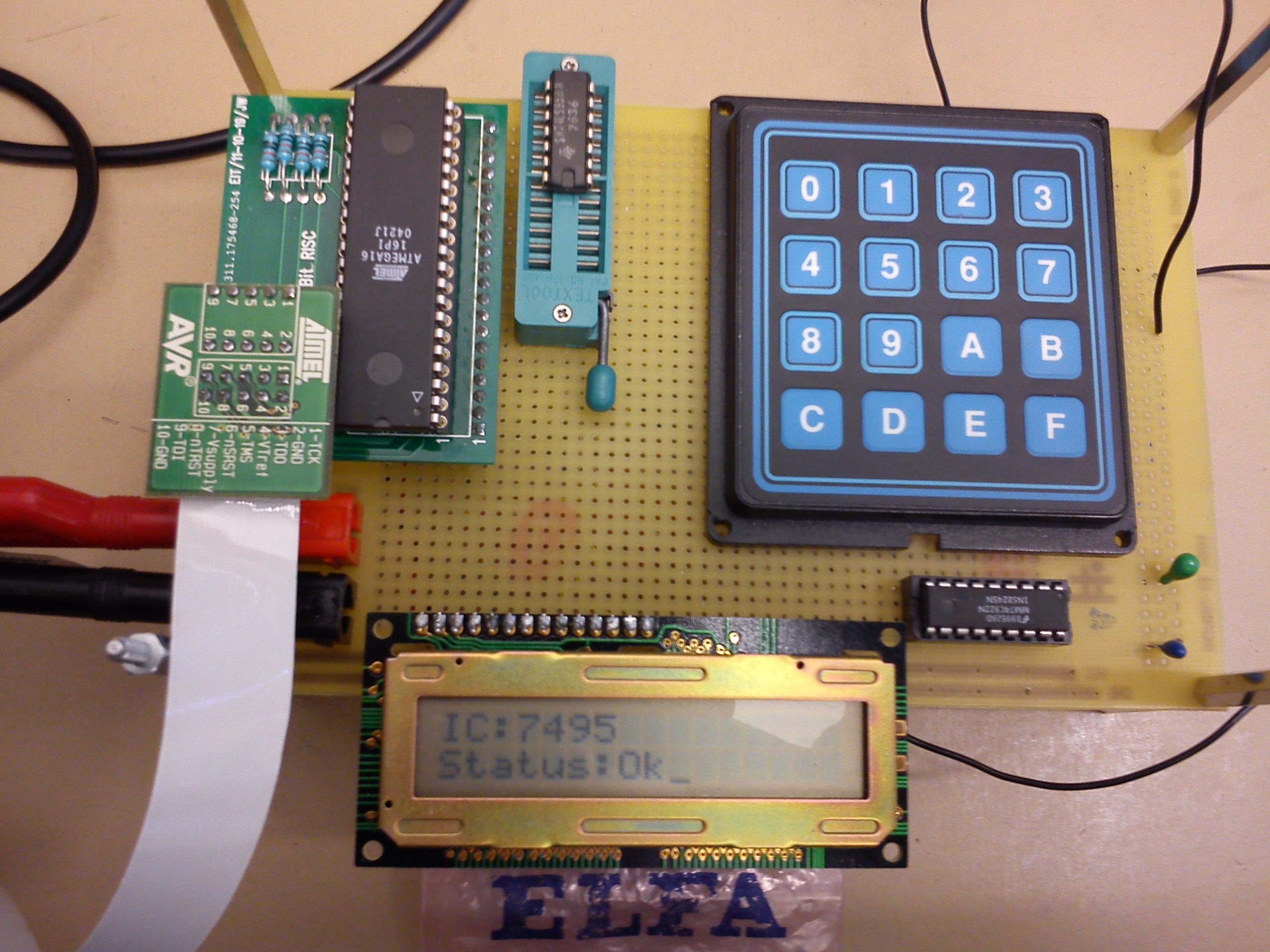

We decided to build an IC testing unit because it sounded intersting to know how to build one, our unit works great,
but it is only designed to test IC in the 74... series these are the circuits you can test with our unit
Quad Gate:
7400, 7402, 7408, 7428, 7432, 7436, 7437, 7486
6 Gate:
7404, 7414,
Triple Gate:
7410, 7411, 7427,
Dual Gate:
7413, 7418, 7420, 7421, 7440, 7450, 7451
Single Gate:
7430, 74133
BDC-Dec:
7442
BCD-bin:
74184
bin-BCD:
74185
BCD-SevenSeg:
7448
Register:
7471, 7472, 7473, 7474, 7475, 7476, 7477, 7478, 7479,
7491, 7494, 7495, 7496
Adder:
7482, 7483
counter:
7490, 7492, 7493
demux:
74137, 74138, 74139
mux:
74151, 74152, 74153
parity:
74280
Multiplier:
74261
